This independent Level 3 damp survey was undertaken for a residential property in West Kensington (W14). The property owner commissioned the assessment to establish the exact cause of elevated moisture levels and cold spots on the ceiling. The specialist survey provided an objective evaluation of internal living areas and external roof drainage.
About the Issue
The homeowner observed damp patches near the entrance ceiling, bedroom bay window and living room double doors. With one room intended as a nursery for a newborn baby, discovering a 69.3% humidity reading inside a storage cupboard created an urgent need for an expert, independent opinion.
The Challenge
The inspection took place on Thursday the 5th at 11:00 a.m., utilising electronic moisture meters, hygrometers and an aerial drone to inspect the property from ground level to the roof deck.
Key evidence gathered during the assessment included:
- Atmospheric testing inside the nursery cupboard registered a humidity level of 69.3%, presenting a clear risk for mould growth on stored items.
- Moisture meter testing identified rising damp along the solid external wall of the small bedroom, slightly elevated floor-level readings and ceiling cold spots indicating missing insulation overhead.
- Moisture meters recorded rising damp at the base of walls on the left-hand side and right-hand side of the living room double doors, as well as the bedroom bay window foundation area.
- Ceiling dampness near the entrance was traced to water penetrating from the external front entrance steps directly above.

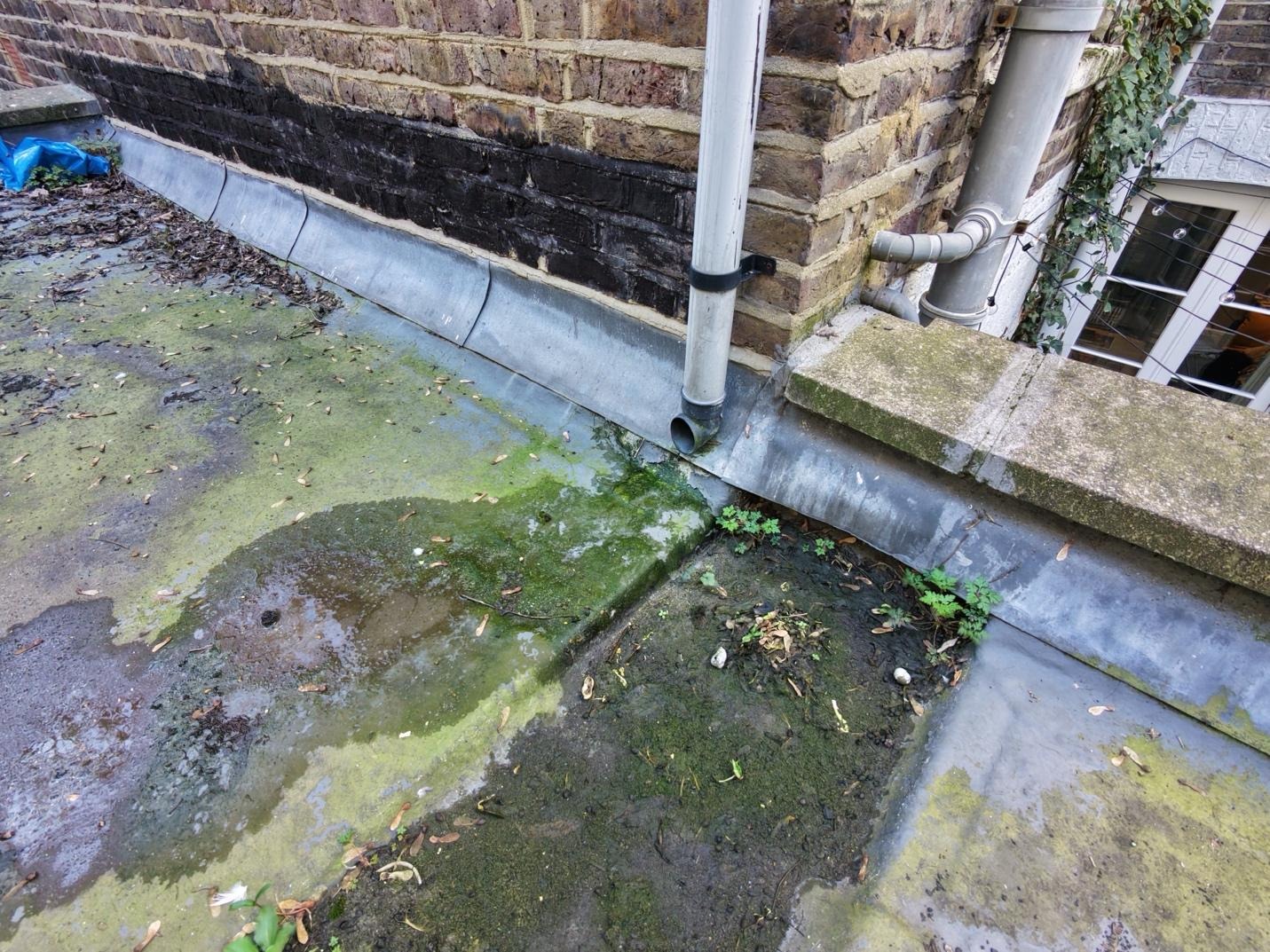

- A drone survey of the small flat roof directly above the small bedroom identified severe moss retention, compromised lead flashing and an improperly terminated downpipe discharging directly onto the flat roof.
The Solution
The survey report outlined a comprehensive, multi-room action plan:
- Remove excess stored items from nursery cupboards to improve airflow and prevent mould.
- Lay a damp proof membrane across the small bedroom floor and damp proof the small wall on the left-hand side upon entering and the short wall located between the two doors.
- Apply thermal insulated plasterboard to the solid external wall and add thermal insulation above the ceiling to eliminate cold spots.
- Hire a qualified roofing contractor to clean and treat the flat roof surface, repair lead flashing and alter the downpipe so water discharges into a ground-level drainage system.
The Outcome
The survey provided the homeowner with total peace of mind and an accurate blueprint for repairs. Armed with independent findings, they resolved the roof drainage defect and thermal bridging, ensuring a dry, healthy nursery space.
Why This Case Matters
A high humidity reading in a cupboard often indicates poor ventilation combined with cold external masonry. Independent damp specialists evaluate environmental air quality alongside structural waterproofing, ensuring property owners address both insulation needs and water ingress.
Why is removing excess items from the cupboard recommended?
Clearing excess stored items improves internal airflow, reducing the risk of mould developing on cupboard surfaces and stored belongings in high-humidity conditions.
Was rising damp found in the living room?
Yes. Elevated moisture readings at the base of the walls on both the left-hand side and right-hand side of the double doors are consistent with rising damp.
What works are required on the rear flat roof?
A qualified roofer must remove moss growth, repair lead flashing and redirect the downpipe so water flows directly into a ground drain.
